Automated Trigger Flows

Creating Flows from Scratch using Different Types of Triggers

Automated Trigger Flows

• Initiated by specific events or triggers.
• Respond to changes or actions in apps or systems.
• Used for streamlining business processes and data integration.

Creating an Automated Flow

In this example we will set up a workflow that sends email notifications to the owner whenever a row is added, deleted, or modified in a data table.

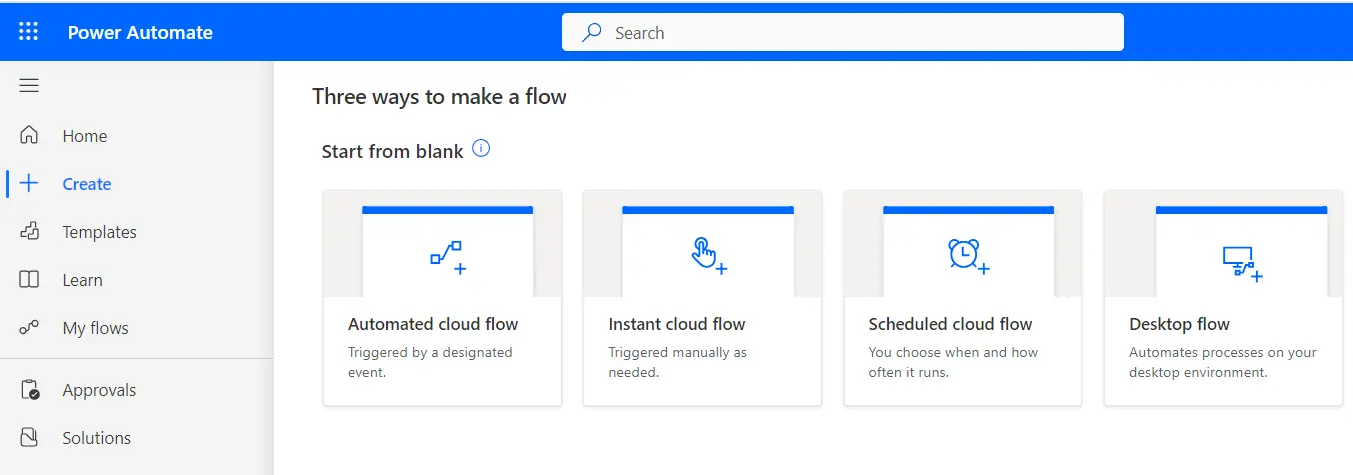

Step 1: Access Power Automate

• Start by logging into the Power Automate portal (make.powerapps.com) Sign in using your Microsoft account or organizational credentials.

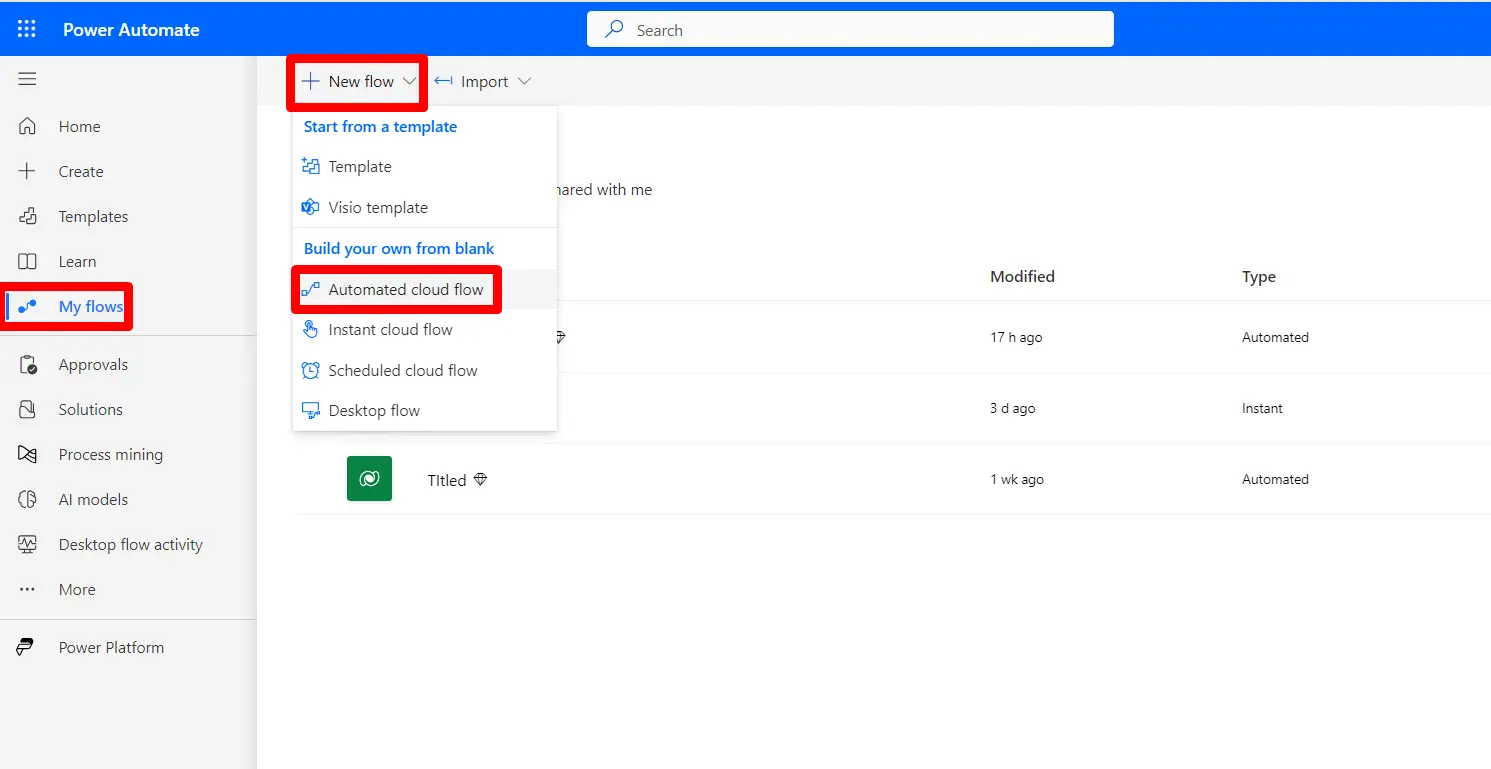

Step 2: Begin Flow Creation

• Navigate to the "My Flows" section, Look for "New flow” option.

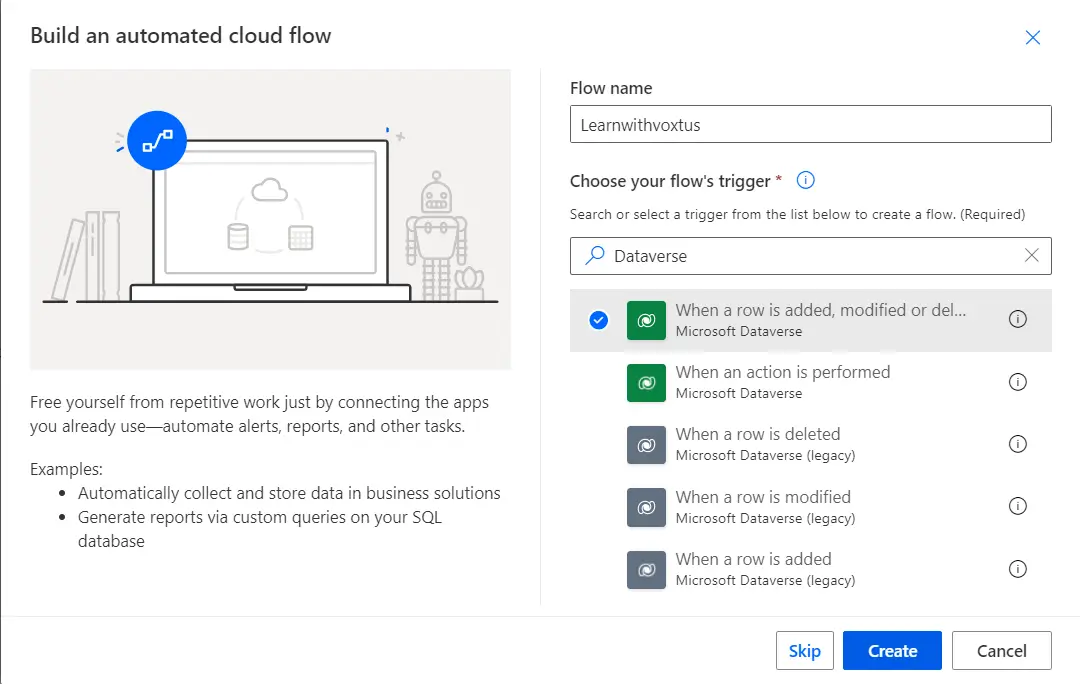

Step 3: Select a Trigger

• Choose a trigger for your flow. A trigger is the event or condition that initiates your automation. There are various types of triggers, including manual, automated, and scheduled.
• In this example we have selected Dataverse trigger When a row Added Modified or Deleted.

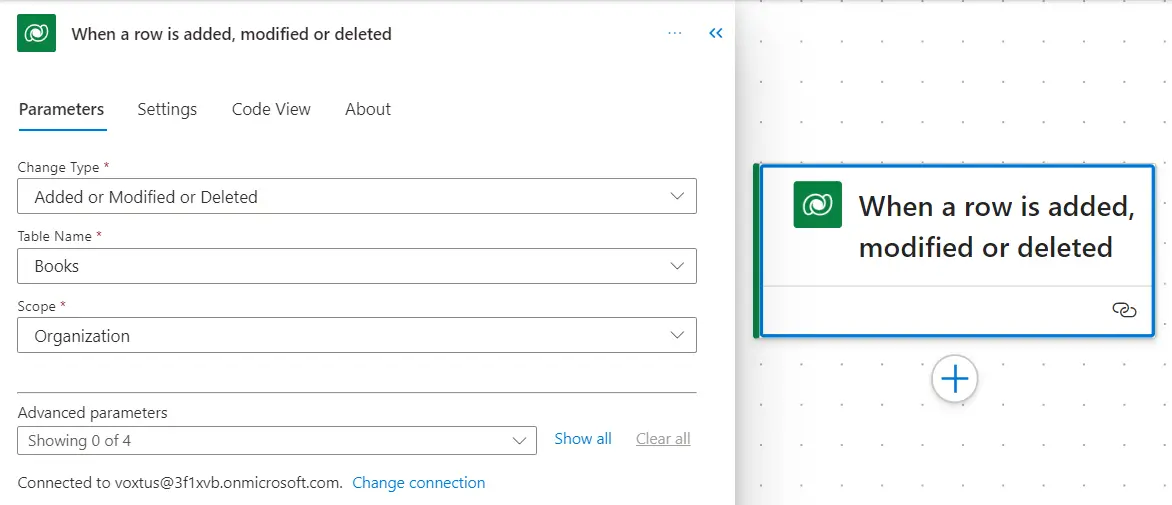

Step 4: Configure the Trigger

• After selecting your trigger, you will be prompted to configure it.

Step 5: Add Actions

• Once your trigger is set up, you can start adding actions to your flow. Actions are the specific tasks your flow will perform when the trigger condition is met.
• Action can be added by clicking on Icon.

Step 6: Configure Actions

• For each action, you'll need to configure its settings. This typically involves specifying data sources, recipients, message content, or other parameters.

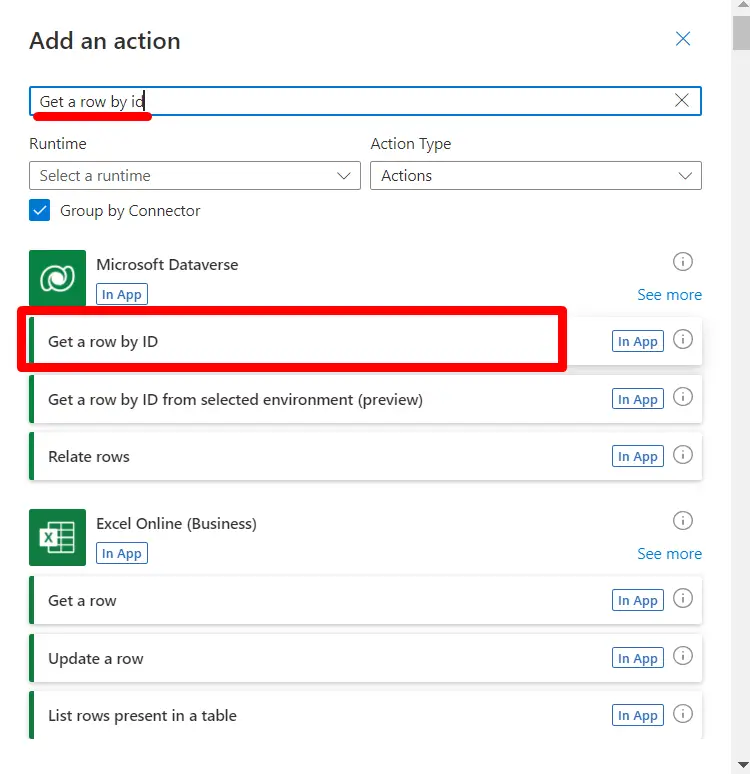

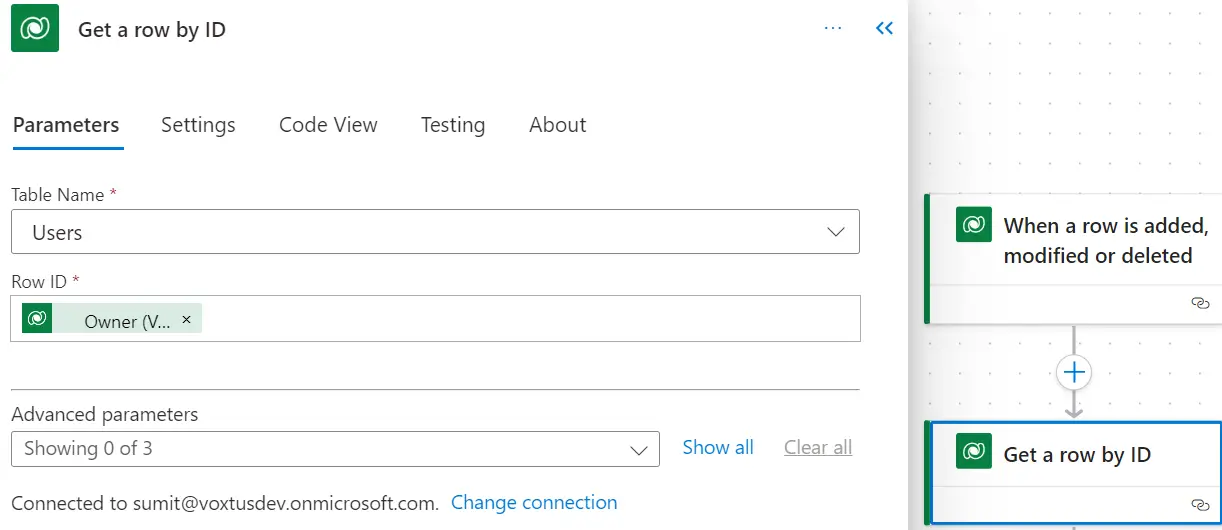

  • We’ve added and configured two actions one is to get the details of owner

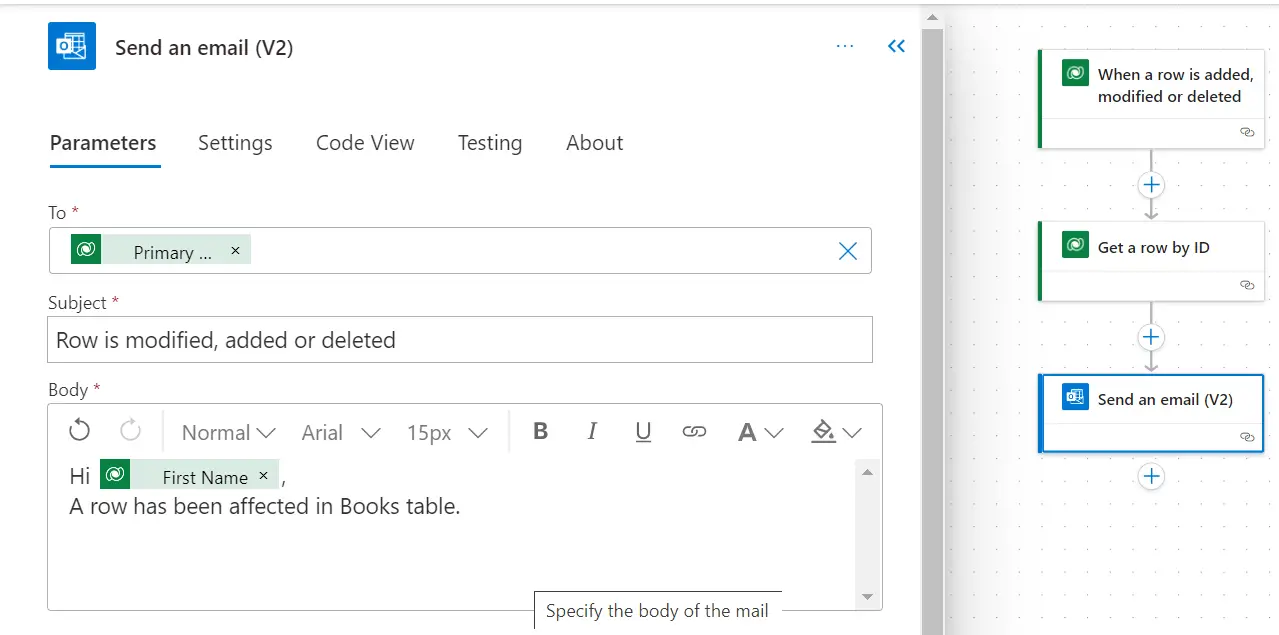

  • Another Action is to send email to owner.

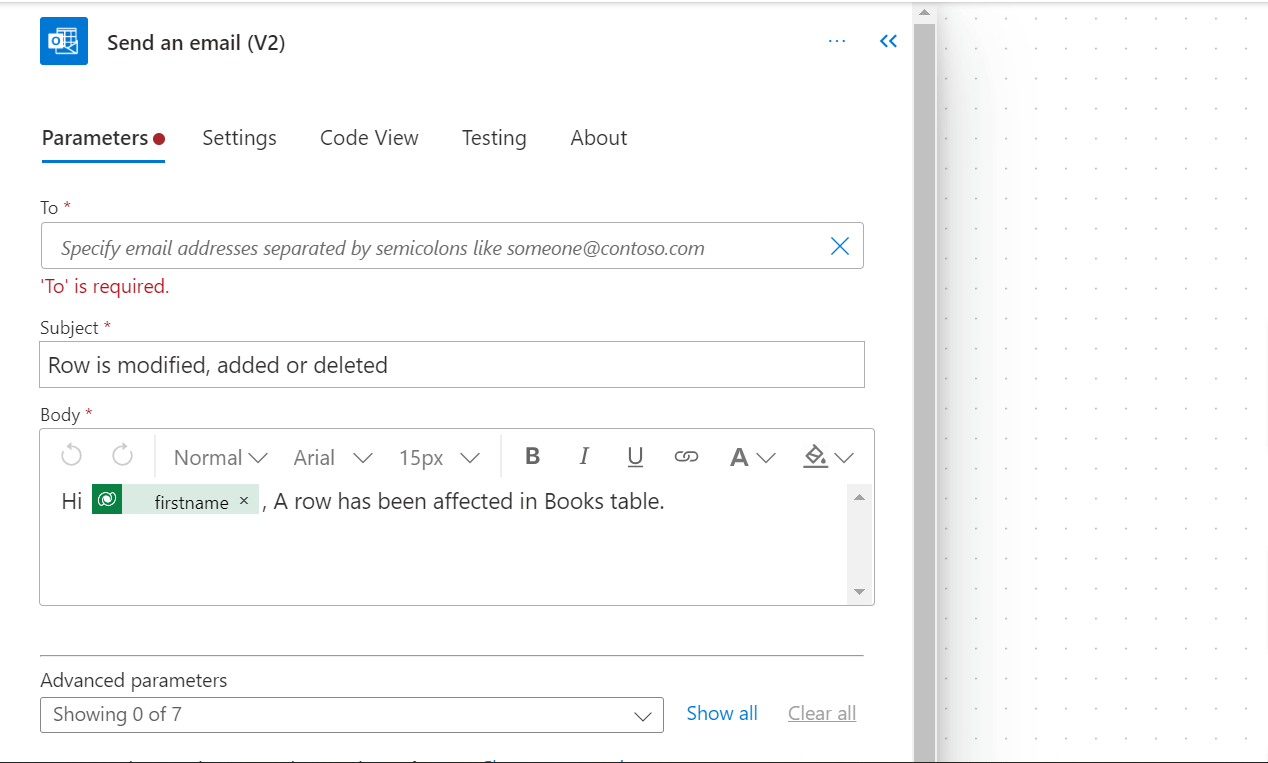

To Add Dynamic Content:

Step 7: Test and Save Your Flow

• It's a good practice to test your flow before finalizing it. Once satisfied, save your flow
• To test this flow we have deleted a row from our “Books” table so that flow will get triggered.

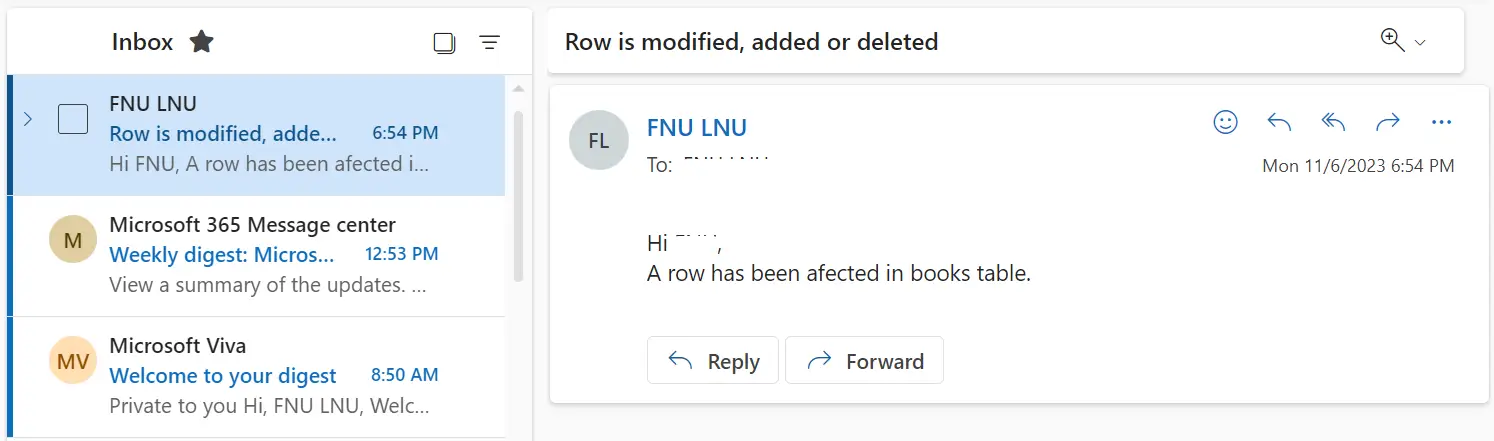

• Once the flow has successfully run, you will receive an email at the owner's email address.

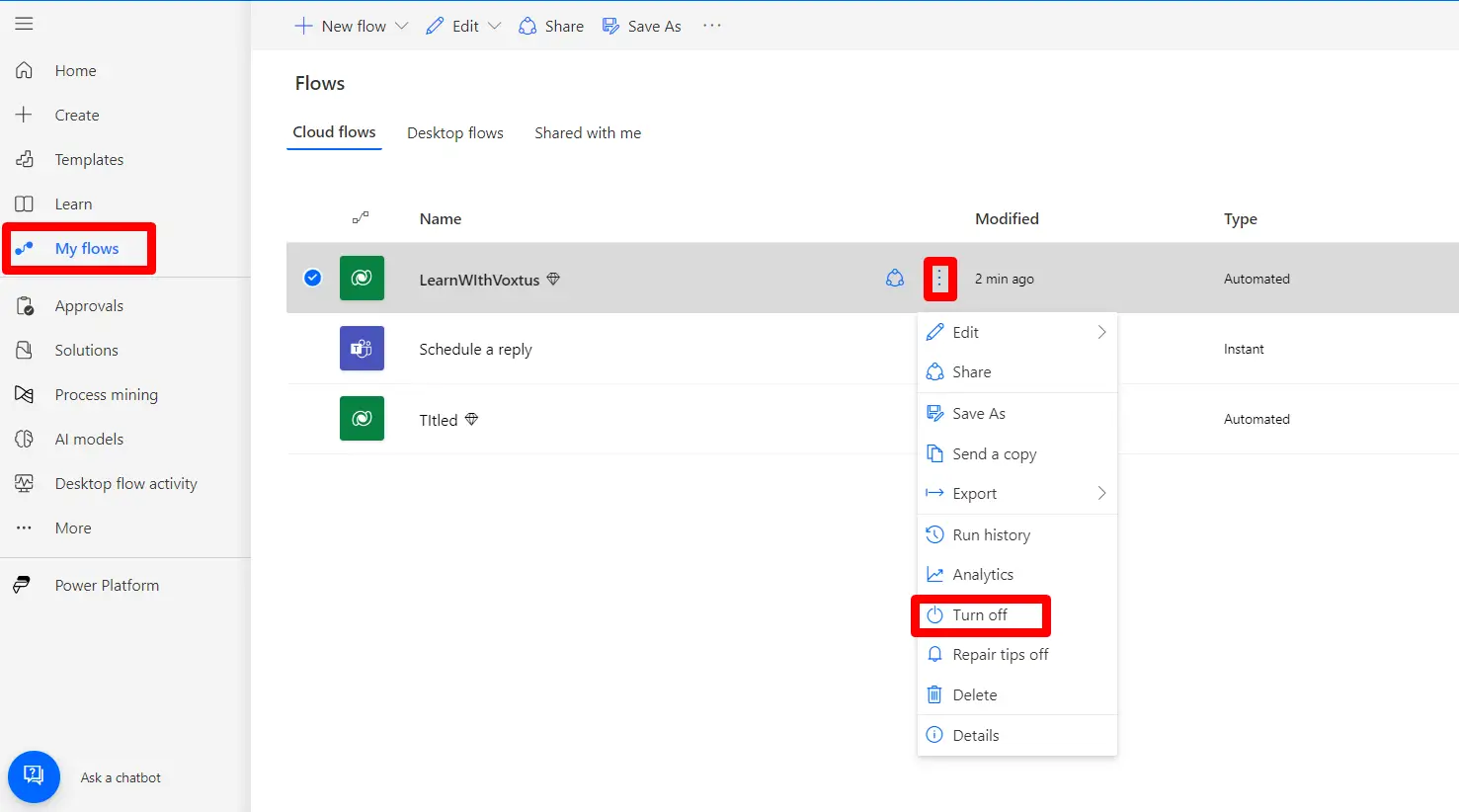

Step 8: Activate the Flow

• You can activate and deactivate your flow. Once activated, it will respond to the trigger events as defined.
